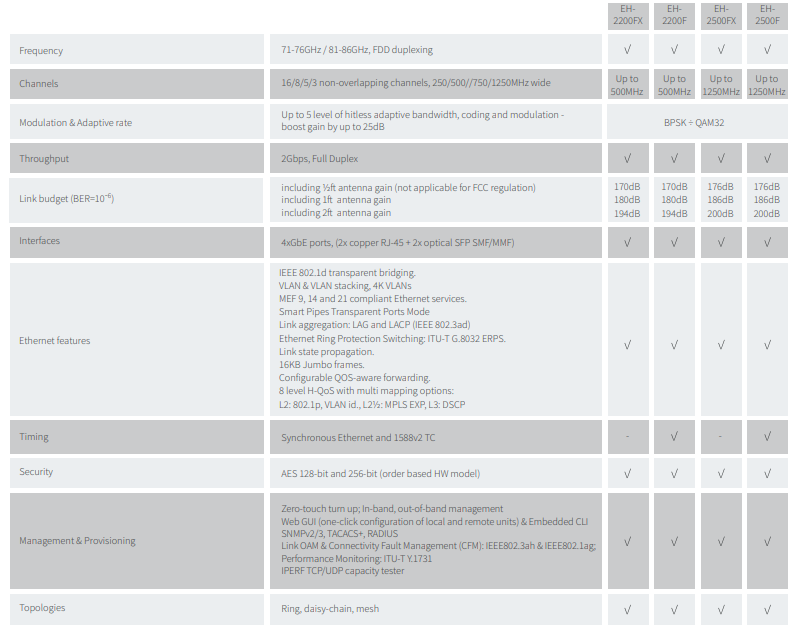

2 Gbps E-Band Radio with Extended Range

---

The EH-2X00 series provides 2Gbps full-duplex capacity with extended range for accelerating broadband deployment in urban, suburban or rural areas. The carrier grade radio delivers fiber-like performance, reliability and throughput, with low CAPEX.

Applications for a Wide Range of Markets

1. Business Broadband

2. Video Surveillance Connectivity

3. GTTH- Gigabit to the Home

4. Campus Connectivity

5. Mobile Backhaul

Robust & Futureproof

The EH-2X00 series delivers up to 2Gbps full duplex point-to-point wireless Ethernet connectivity, achieved at only 32 QAM modulation, that will future proof your network. Operating over the interference free 71-76/81-86GHz band, the EH-2X00 makes it easy for providers and enterprises to extend their networks maintaining fiber-like performance.

Carrier Grade Performance and Reliability

performance. Siklu’s EH-2X00 series hitless adaptive bandwidth coding and modulation, synced with user configurable 8 levels H-QoS, ensure correlated payload prioritization for high availability. An integrated L2 switch with fiber and copper ports enable implementation in resilient topologies like cascade or ring, without the need for additional equipment. In addition, the F series is designed for mobile operators, with built-in Sync-E and 1588v2 to ensure smooth operation over packet backhaul.

Small Size, Easy to Deploy and Manage

The all-outdoor radio has a tiny footprint that eases site acquisition. Its light weight and small size contribute to a quick and easy installation. Easy to use web GUI manages local and remote units and commissioning from a NOC is possible

No Interference - Reliable Operations

Characterized by pencil thin beams, E-band radios guarantee no interference and high reliability. The EH-2X00 series has 16 nonoverlapping channels that are user selectable, making it the most scalable solution on the market for dense deployments.

Easy Spectrum Acquisition Anywhere

The E-band spectrum is uncongested, even in dense urban areas. E-band offers low licensing fees and quick licensing processes, while maintaining the advantage of spectrum protection.

Based on Siklu’s Field Proven Platform

The EH-2X00 series with its extended-range variant is the 2Gbps evolution of the best-selling EtherHaul™ series - the world’s top millimeter-wave radio. Tens of thousands of links have been deployed and are performing reliably in diverse weather conditions all over the globe.

Exceptional Value

The EH-2X00 series provides fast Return On Investment (ROI) and minimizes Total Cost of Ownership (TCO). The advanced 2Gbps system delivers an unbeatable price per MB. Its small and light form factor and simplified commissioning lower installation costs, and its field proven high reliability reduces site visits.

Best ROI for any Application

The EH-2X00 is available with multi-step licenses for scalable rollouts. Selectable antenna sizes match footprint with distance and link availability requirements.

---

Street-Level Gigabit V-band Radios

---

Typical Applications:

1. Safe/Smart City Network
2. Business Broadband
3. WiFi Hotspot Backhaul
4. Gigabit to the Home (GTTH)
5. Small Cell Backhaul

1 Gigabit Throughout on the Street

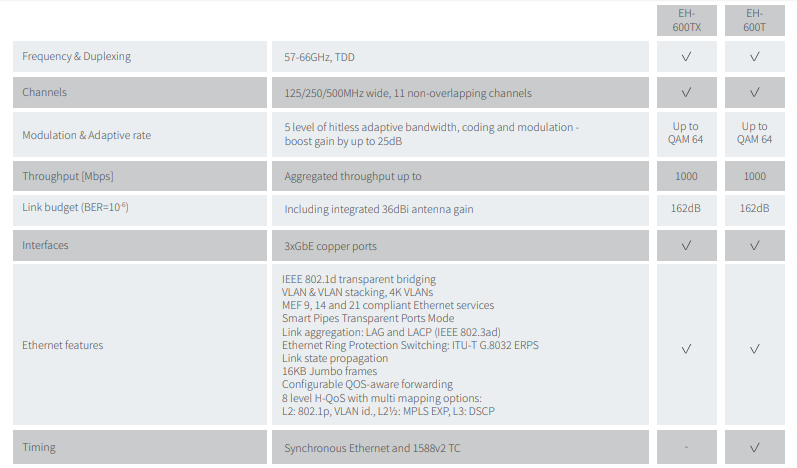

The EtherHaul™-600 series delivers future-proof capacity to any street level application. Operating over the unlicensed 60GHz band, the palmsized radio provides predictable and reliable connectivity, and is easily installed on any kind of street furniture.

No Interference-Reliable Operations

The unlicensed 60GHz V-band spectrum is uncongested, even in dense urban areas. Characterized by pencil thin beams, V-band radios guarantee no interference and high reliability. The EH-600 series has 11 non-overlapping full-capacity channels that are user selectable. In addition, the non-linear high attenuation of the 60GHz spectrum is utilized for optimal matching of link length and selected channel. This results in unmatched frequency reuse capabilities, making it the most scalable solution on the market for dense deployments.

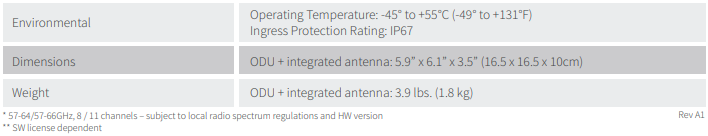

World’s Smallest 60GHz Radio

The palm-sized radio simplifies site acquisition, and is quickly installed on any kind of street furniture. The single box solution incorporates an integrated antenna and a GbE switch, with PoE-in and dual PoE-out. Easily cascade radios and power external devices like video surveillance cameras and Wi-Fi access points.

Easiest Installation & Management

Any installer can deploy the EH-600, no telco expertise necessary. Physical installation with out-of-the-box 8-levels of QoS aware Ethernet services typically takes just 15 minutes. Optional advanced configuration is available via an intuitive web GUI, while additional services may be remotely activated from a NOC. An IPERF integrated TCP and UDP load tester streamlines commissioning and troubleshooting.

Robust & Future Proof The all-weather IP-67 sealed radio guarantees carrier–grade performance under even the harshest weather conditions. The combination of high capacity and low latency, along with the integrated switch and extra ports enables deployment in ring, mesh or extended cascading, with fewer aggregation units needed. The EH-600 also incorporates Hitless Adaptive Bandwidth Coding and Modulation for high availability. Field Proven Technology EtherHaul™ is the world’s bestselling millimeter wave radio. Tens of thousands of units have been deployed and are performing reliably in varying weather conditions all over the globe. The EH-600 incorporates Siklu’s integrated all-silicon technology, which increases reliability while reducing size and cost. The result is a palm sized radio with a proven 90-year MTBF and an unbeatable price/throughput. Optional Asymmetric Capacity Optimization Both T and TX models, with their unique TDD duplexing, allows you to set-up asymmetric capacity configuration. Match your upload/ download rates to your application and optimize use of spectrum, reduce power requirements and lower both CAPEX and OPEX. Streamline Operations with Carrier Ethernet & Synchronization The EH-600 has MEF-compliant integrated Carrier Ethernet switch that streamlines operations with configurable bandwidth-aware QoS, service management and OAM. For mobile operators, optional built-in synchronization with Sync-E and 1588v2 ensures smooth performance over packet based backhaul networks. Exceptional Value With minimal deployment costs and virtually no maintenance, the EH-600 series minimizes Total Cost of Ownership (TCO) and provides a Return On Investment (ROI) often measured in months, providing an unbeatable price/Mb. A single part number supports both 57-64GHz and 64-66GHz sub-bands, reducing TCO further, while benefiting from extended range achievable with the 64-66GHz spectrum.

---

Interference-free Ethernet

---

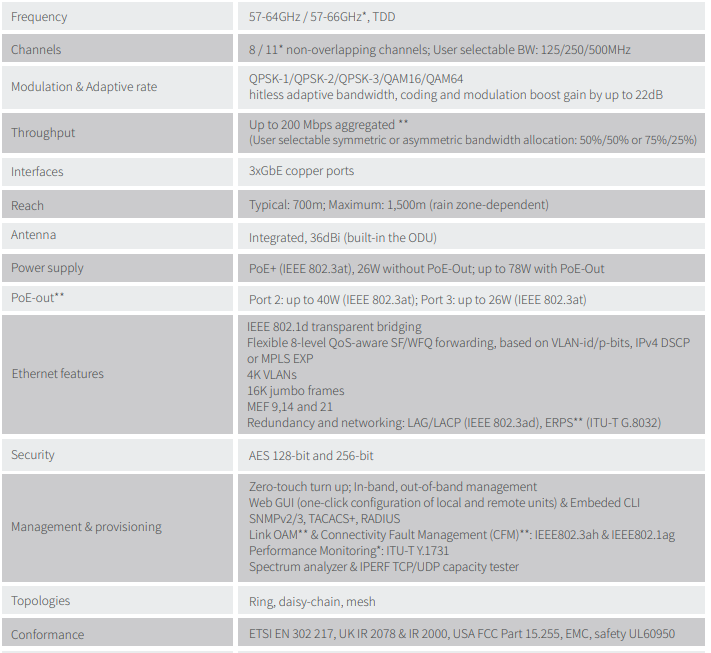

The EtherHaul-500TX wireless bridge delivers cost-efficient, interference-free, Ethernet connectivity. Operating over an uncongested band, the point-to-point radio link is swiftly deployed on any street furniture to enable capacity-hungry services. Applications for a Wide-Range of Vertical Markets

1. Video Surveillance Connectivity (CCTV)
2. Wi-Fi Hotspot Backhaul
3. Business Broadband
4. Campus Connectivity

World’s Smallest 60GHz Radio – less than 2 liters The palm-sized radio is swiftly and seamlessly integrated with street furniture - greatly alleviating site acquisition procedures. The one-box solution incorporates an integrated antenna and Ethernet switch, with PoE-In and dual PoE-Out. These features reduce the number of fragile cable-runs and power sources, and eliminate the need for external devices. Cascading radios and servicing supplementary devices such as surveillance cameras and Wi-Fi access points are simplified. Plentiful License-Free Spectrum Siklu’s 60GHz solution utilizes the ample 9GHz-wide V-Band spectrum in the most efficient way known today. With 8/11 non-overlapping full capacity channels, which are also user-selectable, the EH-500TX provides the most cost-effective scalable solution on the market for dense street-level networks. Interference-Free Communication The non-linear high attenuation of the 60GHz spectrum is utilized to facilitate optimal matching between the link length and selected channel. This results in unmatched frequency reuse capabilities, while the inherent narrow beams further increase reuse factors. These features ensure interference-free, full capacity service, and empower networks with fiber-like connectivity. Robust & Future Proof The field proven, all-weather IP67 sealed radio guarantees predicted carrier grade performance, even in harsh conditions; facilitating futureproof investment and easily maintained SLAs. The combination of interference-free capacity and sub-millisecond latency is leveraged to create scalable street-level extended cascading, while reducing the number of aggregation points. Field Proven Siklu’s 60GHz solution utilizes EtherHaul’s groundbreaking, all-silicon technology to provide proven reliability. Tens of thousands of units are successfully deployed around the globe with a 90-year MTBF. Versatile Integrated Toolkit Siklu listens to customer pain points, and has combined the powerful network processor with the market’s most advanced all-silicon RF circuit to ensure that service providers save OPEX: IPERF: integrated TCP and UDP load tester eases commissioning and remote trouble-shooting procedures. Spectrum Analyzer: eases operational channel selection and fault analysis. Deploy & Go With no Telco knowledge required, out-of-the-box 8-levels of QoSaware Ethernet services may be deployed in just 15 minutes. Optional advanced configuration is available via an intuitive Web GUI, while additional services may be remotely activated from a NOC. Exceptional Value With minimal deployment costs and virtually no maintenance, the EH-500TX minimizes Total Cost of Ownership (TCO) and provides a Return On Investment (ROI) often measured in months; providing an unbeatable price/Mb.

---

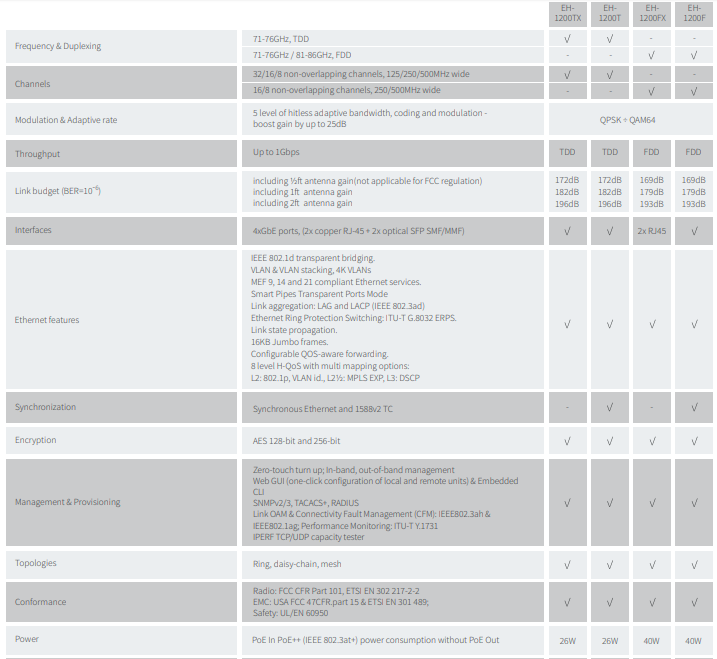

Carrier-Grade 1000Mbps E-Band Radio

---

The EtherHaul-1200 series provides carrier grade Gigabit connectivity with fast ROI. Applications for Wide Range of Markets

1. Business Broadband
2. GTTH- Gigabit to the Home
3. Mobile Backhaul
4. Campus Connectivity
5. Video Surveillance Connectivity

Most Deployed Millimeter Wave Radio in the World The EtherHaul-1200 series delivers carrier-grade ultra high capacity wireless point-to-point Ethernet. With up to 1000Mbps full-duplex over the uncongested 71-76/81-86GHz spectrum, the EH-1200 provides service providers and businesses around the world with an affordable, advanced wireless solution that is easy to install and maintain. No Interference – Reliable Operations Characterized by pencil thin beams, E-band radios guarantee no interference and high reliability. The EH-1200 series has up to 32 non-overlapping channels that are user selectable, making it the most scalable solution on the market for dense deployments. Easy Spectrum Acquisition Anywhere The E-band spectrum is uncongested, even in dense urban areas. E-band offers low licensing fees and quick coordination processes, while maintaining the advantage spectrum protection. Carrier Grade Performance over Wireless High throughput and low latency combine to deliver fiber-like performance. Siklu’s EH-1200 series incorporates 8 levels of configurable QoS-aware, hitless adaptive bandwidth coding and modulation for high availability. An integrated L2 switch and extra ports enable implementation in resilient topologies like cascade or ring, without the need for additional equipment. Streamline Operations with Carrier Ethernet & Synchronization The entire 1200 product line comes with MEF-compliant integrated Carrier Ethernet features that streamline operations with service management and OAM. In addition, the F and T series are designed for mobile operators, with built-in Sync-E and 1588v2 to ensure smooth operation over packet backhaul. Optional Asymmetric Capacity Optimization Both T and TX models, with their unique TDD duplexing, allows you to set-up asymmetric capacity configuration. Match your upload/ download rates to your application and optimize use of spectrum, reduce power requirements and lower both CAPEX and OPEX. Small Size, Easy to Deploy & Manage The all-outdoor radio has a tiny footprint that eases site acquisition. Its lightweight and small size contribute to a quick and easy installation. Easy to commission and operate with an integrated capacity-tester and a user friendly intuitive web GUI, manages local and remote units, while also allowing commissioning from a NOC. Based on a Cost Reducing All-Silicon Technology The EH-1200 series are based on Siklu’s advanced integrated-silicon technology, which increases reliability and reduces size and cost. The result is a very small, very light radio with a proven 90-year MTBF and an unbeatable price/throughput. The small and light form factor lowers installation costs, and the high reliability reduces site visits, lowering TCO even further. Best ROI for any Application The EH-1200 is available in TDD and FDD duplexing schemes, with throughputs scaling up to 1000Mbps full duplex. Selectable antenna sizes, range from street-level ½ft*. to rooftop 1ft. and 2ft. models, and match footprint with distance and link availability requirements.

---

5Gbps 70/80GHz radio – High Bandwidth for Demanding Networks

---

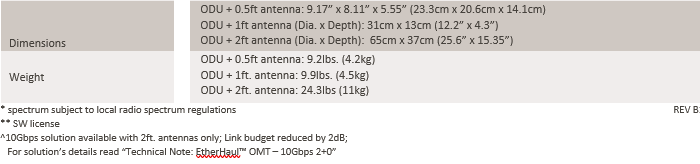

The EH-5500FD brings 5Gbps full duplex throughput for demanding networks in the metro, aggregation and trunking applications. 10Gbps full duplex available with Siklu OMT 2+0 kit.

Applications for a Wide Range of Vertical Markets

1. Fiber Extensions
2. Business Broadband
3. Metro & Aggregation Networks
4. Ring Topologies
5. Smart City Aggregation

Robust & Futureproof The EH-5500FD radio delivers 5Gbps full duplex (10 Gbps with OMT 2+0) point-to-point wireless Ethernet connectivity to futureproof your network. Operating over the interferencefree 71-76/81-86GHz band, the FDD EH-5500FD has additional output power and wider channels, making it easy for providers and enterprises to extend their networks by very quickly adding affordable, high capacity wireless links that are easy to install and maintain. Carrier Grade Performance Over Wireless High throughput and low latency are combined to deliver fiber like performance. The EH-5500FD incorporates adaptive bandwidth coding and modulation for high availability. Creates Resiliency and Availability The EH-5500FD easily integrates with Ethernet switches or MPLS routers to enable deployment in ring, mesh or any high resiliency topology. Small Size, Easy to Deploy & Manage The all-outdoor radio has a small footprint that alleviates site acquisition. Its light-weight and small size make for a quick and easy installation, while the intuitive web GUI manages local and remote units to enable fast commissioning and configuration. Based on Siklu’s Field Proven Platform The EH-5500FD is the high-capacity 5Gbps evolution of the best-selling EtherHaul™ series - the world’s most deployed millimeter wave radio. Tens of thousands of links have been deployed and are performing reliably in diverse weather conditions all over the globe. Fast Spectrum Acquisition at Affordable Cost The E-band spectrum is uncongested, even in rural or dense urban areas. Using a high-gain pencil-beam antenna, guarantees available spectrum anywhere and maximizes spectrum re-use. Additionally, the E-band technology offers low licensing fees and quick licensing processes. Exceptional Value The EH-5500FD provides fast return on investment (ROI) and minimizes total cost of ownership (TCO). The advanced 5Gbps system delivers an unbeatable price per MB. Its small and light form factor lowers installation costs, increases reliability and reduces site visits. Ultra-fast activation time with the unbeatable reliability will become your ‘winning card’ in any competitive environment.

---

10Gbps 70/80GHz Radio – Wireless Fiber Connectivity

---

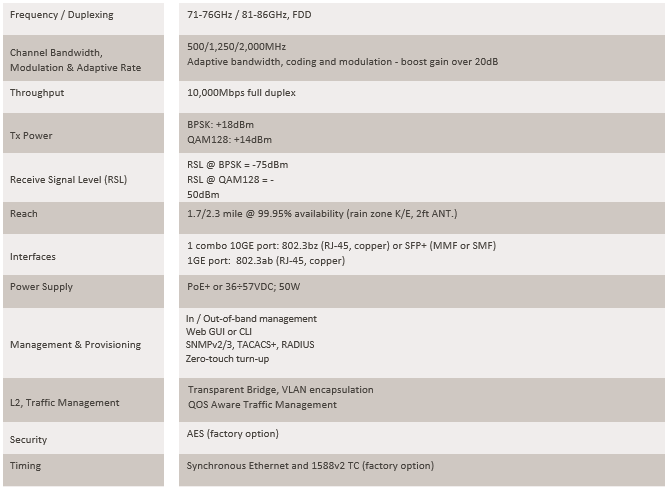

The EH-8010FX delivers 10Gbps Full Duplex throughput for high capacity networks in Metro, Aggregation, and Trunking applications.

Applications for a Wide Range of Vertical Markets

1. Fiber Extensions
2. Business Broadband
3. Metro & Aggregation Networks
4. Ring Topologies
5. Smart City Aggregation

10 Gbps Over Long Distance The EH-8010FX radio delivers 10Gbps full duplex point-to-point wireless Ethernet connectivity with the longest mmWave reach by means of the highest system gain in the market. Incorporating dozens of Siklu innovations, the EH-8010FX is based on the same platform that has been deployed in tens of thousands of links from the EtherHaul family. Carrier Grade Features High throughput and low latency combine to deliver fiber compatible performance. The EH-8010FX incorporates QoSaware adaptive bandwidth coding and modulation for high availability and easy integration with Ethernet switches or MPLS routers in highly resilient topologies. The EH-8010FX is designed to connect into existing networks with its support for both copper and fiber 10G interfaces allowing service providers and enterprises to extend their copper or fiber networks. Small Size, Easy to Deploy & Manage The all-outdoor radio has a small footprint and is light weight which makes site acquisition a breeze. The product comes pre-configured out of the box with no license to download greatly simplifying the time and cost for installation. The intuitive web GUI manages local and remote units to enable fast commissioning and configuration. Exceptional Value With its IP67 construction, the EH-8010FX is extremely rugged and designed to last for years in the harshest conditions at a price that yields quick Return-On-Investment (ROI) and minimizes Total Cost of Ownership (TCO). The advanced 10Gbps system delivers an unbeatable price per Gb. Its small and light form factor lowers installation costs, increases reliability and reduces site visits. Massive Spectrum Availability, and High Reuse The EH-8010FX operates over the interference-free 71-76/8186GHz E-band spectrum, with a total of 10GHz of bandwidth for use worldwide. By using a high-gain pencil-beam antenna, this helps guarantee spectrum will be available everywhere and maximizes spectrum re-use. Additionally, E-band systems are governed by low licensing fees and a quick licensing processes.

---

Multi-Gigabit Throughput in an Always-On Point-to-Multipoint Radio

---

MultiHaul™ is a PTMP multi-gigabit radio operating over millimeter waves. It brings the advantages of mmW – multi-gigabit capacity, immunity to interference and always-on reliability - to a cost effective small form factor PTMP solution. MultiHaul™ is a plug & play system designed to easily scale, taking advantage of patent-pending scanning antennas that auto-align links, as well as robust planning and management tools.

A Wide Range of Applications

1. Security / Safe City Networks
2. Gigabit to the Home

3. Smart City

4. Business Services

5. Wi-Fi Backhaul

Physically Immune Narrow Beams MultiHaul™ units operate over the millimeter wave spectrum using narrow beams. This confers several advantages including complete immunity to interference and network jamming, as well as high security. In contrast to wide-beam wireless systems that need to use multiple strategies to perform in dense areas, and are not successful 100% of the time, MultiHaul™ is inherently interference-free and secure under any circumstances because of its use of a unique combination of narrow beams and high frequencies. An Ocean of Spectrum The MultiHaul™ takes advantage of large millimeter wave spectrum and wide channels in order to bring multi-gigabit capacity to a PTMP system with a single Base Unit and up to 8 Terminal Units. With its extremely high reuse factor, the wide spectrum is available anywhere, even in dense urban areas and challenging deployment scenarios. Ready Set Go The plug and play system is designed for an easy single person installation. The patent-pending scanning antenna automatically aligns with the Base Units. For buildings with difficult roof-top access, a single base unit needs to be installed on a roof to serve multiple locations. The Terminal Units can be located on building sides with no need for internal re-wiring of buildings to achieve net gigabit throughput. Always-On Mission Critical Networks When you can’t afford to lose a video stream, critical safe city sensor data or any other mission critical data, you need to use a wireless network that’s as reliable and secure as fiber. With maximal immunity to interference and hacker-proof links with embedded AES encryption, MultiHaul™ delivers a network you can count on. Very Large Scale Planning and Optimization MultiHaul™ is available with robust network planning and optimization tools that help system integrators and large operators scale their networks fast and with low overhead. Fiber Quality with Wireless Flexibility Siklu’s millimeter wave radios successfully combine the capacity of fiber with the flexibility, speed of deployment and low TCO of wireless networks. That’s what makes them the world’s best-selling millimeter wave radios every year since 2011. They provide rock solid performance, even under severe weather conditions, in thousands of networks around the globe.

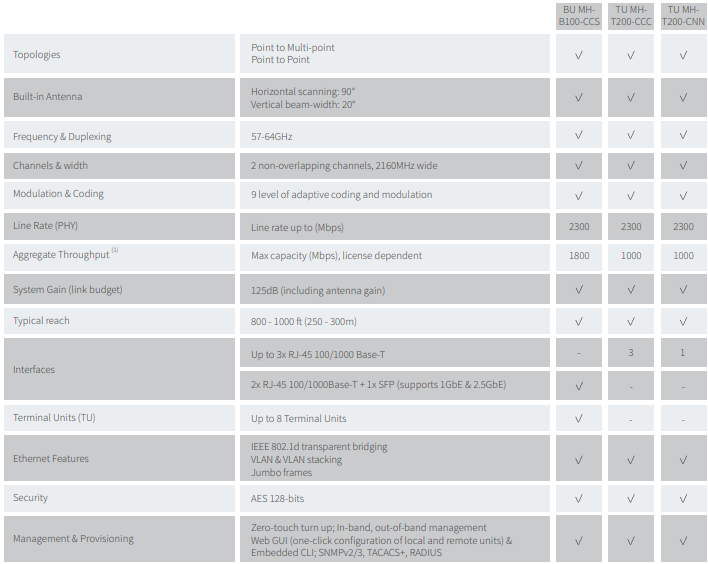

The main specifications of the MultiHaul™ Base Units (BU) and Terminal Units (TU) are outlined in the following table. Some specific details are part number dependent, and identified at the part number level in the ordering documents. Part numbers: MH-B100-CCS-PoE-MWB; MH-T200-CNN-PoE-MWB; MH-T200-CCC-PoE-MWB

---
